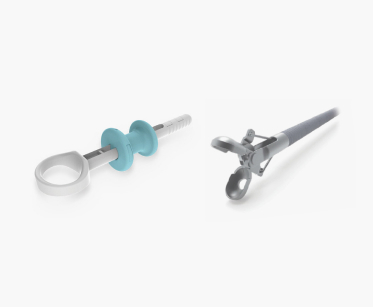

CORE-Forcep
· Disposable Biopsy Forceps (CoreForcep) are disposable endoscopic biopsy forceps that are used for endoscopic sampling of tissue during microscope procedures.
· It is designed to remove a polyp or take a tissue specimen from the metal tube inserted through the endoscope. It is composed of the biopsy tool, wire and handle.
Features
Swing Head
Easy to treat lateral lesions with swing head
Various Size
Various cup size available(1.7 / 2.0 / 2.3mm)
Bite Forcep
The effective bite force minimizes the burden on the user’s hand
Sharpness
Multi-press manufacturing method allows users to collect more specimen with less force
Specifications
| No | Model | Specification |
|---|---|---|
| 1 | IC-FCN17S | ø1.7 / 1600 mm/ Oval cup / Coil sheath |
| 2 | IC-FCN17L | ø1.7 / 2300 mm/ Oval cup / Coil sheath |
| 3 | IC-FCN20S | ø2.0 / 1600 mm/ Oval cup / Coil sheath |
| 4 | IC-FCN20L | ø2.0 / 2300 mm/ Oval cup / Coil sheath |
| 5 | IC-FCN23S | ø2.3 / 1600 mm/ Oval cup / Coil sheath |
| 6 | IC-FCN23L | ø2.3 / 2300 mm/ Oval cup / Coil sheath |
| 7 | IC-FCNC17S | ø1.7 / 1600 mm/ Oval cup / Coil sheath |
| 8 | IC-FCNC17L | ø1.7 / 2300 mm/ Oval cup / Coil sheath |
| 9 | IC-FCNC20S | ø2.0 / 1600 mm/ Oval cup / Coil sheath |
| 10 | IC-FCNC20L | ø2.0 / 2300 mm/ Oval cup / Coil sheath |
| 11 | IC-FCNC23S | Ø2.3 / 1600 mm/ Oval cup / Coil sheath |
| 12 | IC-FCNC23L | ø2.3 / 2300 mm/ Oval cup / Coil sheath |
